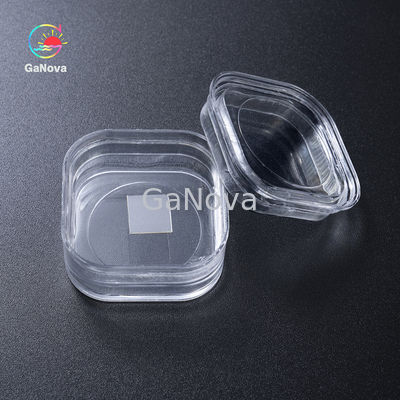

JDCD04-001-002 10x10mm2 (-201) Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

Description
Thickness: 0.6~0.8mm Product Name: Single Crystal Substrate
Orientation: (201) Polished Surface: Single Side Polished
FWHM: <350arcsec Ra: ≤0.3nm

10x10mm2 (-201) Sn-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM<350arcsec,Ra≤0.3 nm Resistance<9E18Ω/cm-3 Optoelectronic devices, insulating layers of semiconductor materials, and UV filters



Since the 1990s, it has been used commonly in light emitting diodes (LED). Gallium nitride gives off a blue light used for disc-reading in Blu-ray. Additionally, gallium nitride is used in semiconductor power devices, RF components, lasers, and photonics. In the future, we will see GaN in sensor technology.





Gallium nitride substrate--Product level
Dimensions 10*15mm 10*10mm
Thickness 0.6~0.8mm
Orientation (201)
Doping Fe Sn
Polished surface Single side polished
Resistivity/Nd-Na / <9E18
FWHM <350arcsec
Ra ≤0.3nm
Package Packaged in a class 100 clean room environment, under a nitrogen atmosphere
