Semiconductor Single Crystal Gallium Oxide Substrate UID Doping

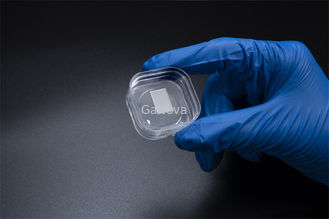

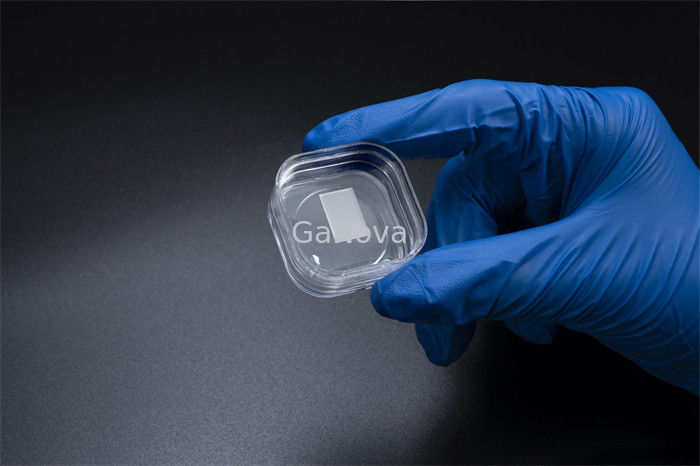

Large Image : Semiconductor Single Crystal Gallium Oxide Substrate UID Doping

Product Details:

Place of Origin:	Suzhou China
Brand Name:	GaNova
Certification:	UKAS/ISO9001:2015
Model Number:	JDCD04-001-005

Payment & Shipping Terms:

Packaging Details:	Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time:	3-4 week days

Contact Now

Semiconductor Single Crystal Gallium Oxide Substrate UID Doping

Description

Thickness:	0.6~0.8mm	Product Name:	Single Crystal Substrate
Orientation:	（010）(201)	Doping:	UID
FWHM:	<350arcsec	Ra:	≤0.5nm
Highlight:	Single Crystal Gallium Oxide substrate , semiconductor wafer ISO , Gallium Oxide substrate UID Doping

Ga₂O₃ Single Crystal Substrate Thickness 0.6~0.8mm FWHM<350arcsec

10x15mm²(-201)UID-doped free-standing Ga₂O₃ single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM＜350arcsec,Ra≤0.5nm Resistance 4.13E+17Ω/cm^-3 Optoelectronic devices, insulating layers of semiconductor materials, and UV filters

Gallium oxide (Ga₂O₃) single crystal is a wide-bandgap semiconductor material. Gallium oxide (Ga₂O₃) has broad application prospects in optoelectronic devices, it used as an insulating layer for Ga-based semiconductor materials, and as an ultraviolet filter.

There are five crystalline phases of Ga₂O₃, but beta-Ga₂O₃ is the only one that can exist stably at high temperature. β-Ga₂O₃ is a new type of ultra-wide bandgap transparent semiconductor material with a forbidden band width of about Eg=4.8 eV, which suitable for manufacturing high power vertical structure power devices with high current density. It has application prospects in the fields of ultraviolet detectors, light-emitting diodes (LEDs) and gas sensors.

Gallium nitride substrate--Research level
Dimensions	10*10mm	10*15mm
Thickness	0.6~0.8mm
Orientation	(010)	(201)
Doping	UID
Polished surface	Single side polished
Resistivity/Nd-Na	/	4.13E+17
FWHM	<350arcsec
Ra	≤0.5nm
Package	Packaged in a class 100 clean room environment, under a nitrogen atmosphere
