Product Details:
|
| Thickness: | 0.6~0.8mm | Product Name: | Single Crystal Substrate |
|---|---|---|---|
| Orientation: | （010） | Polished Surface: | Single Side Polished |
| FWHM: | <350arcsec | Ra: | ≤0.5nm |
| Highlight: | Ga2O3 Wafer 0.6mm,single crystal substrate 0.8mm,Ga2O3 Wafer 0.8mm |
||

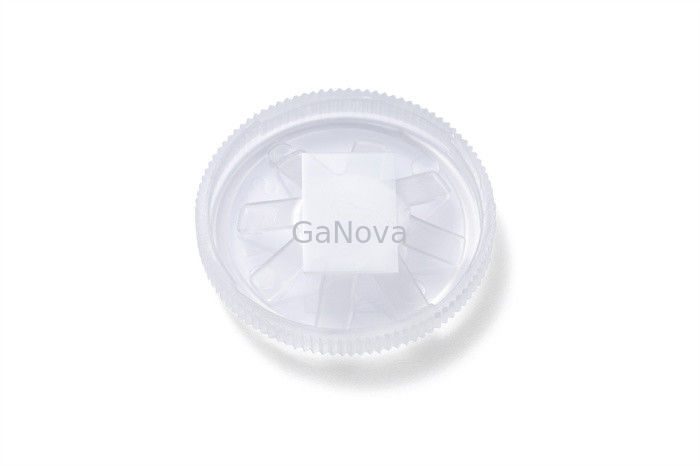

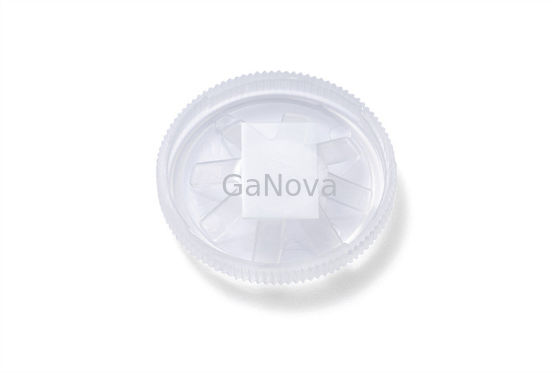

FWHM<350arcsec Ga2O3 Wafer Single Crystal Substrate Thickness 0.6~0.8mm
10x15mm2(010)Sn-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM＜350arcsec,Ra≤0.5nm Resistance 2.00E+17Ω/cm-3 Optoelectronic devices, insulating layers of semiconductor materials, and UV filters
There are five crystalline phases of Ga2O3, but beta-Ga2O3 is the only one that can exist stably at high temperature. β-Ga2O3 is a new type of ultra-wide bandgap transparent semiconductor material with a forbidden band width of about Eg=4.8 eV, which suitable for manufacturing high power vertical structure power devices with high current density. It has application prospects in the fields of ultraviolet detectors, light-emitting diodes (LEDs) and gas sensors.
| Gallium nitride substrate--Research level | ||
| Dimension | 10*15mm | 10*10mm |
| Thickness | 0.6~0.8mm | |
| Orientation | (010) | |
| Doping | Sn | |
| Polished surface | Single side polished | |
| Resistivity/Nd-Na | 2.00E+17 | 1.53E+18 |
| FWHM | <350arcsec | |
| Ra | ≤0.5nm | |
| Package | Packaged in a class 100 clean room environment, under a nitrogen atmosphere | |
