10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing

10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing
10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing

Large Image :  10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD04-001-005
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days

10x15mm2 UID Doped Free Standing Ga2O3 Wafer Single Polishing

Description
Thickness: 0.6~0.8mm Product Name: Single Crystal Substrate
Orientation: (010)(201) FWHM: <350arcsec
Ra: ≤0.5nm Dimensions: 10*10mm; 10*15mm
Highlight:

10x15mm2 Ga2O3 Wafer

,

UID Doped Ga2O3 Substrate

,

Ga2O3 Wafer Single Polishing

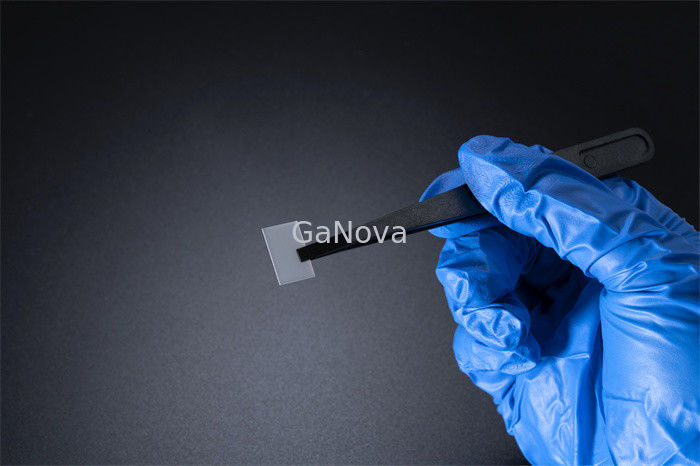

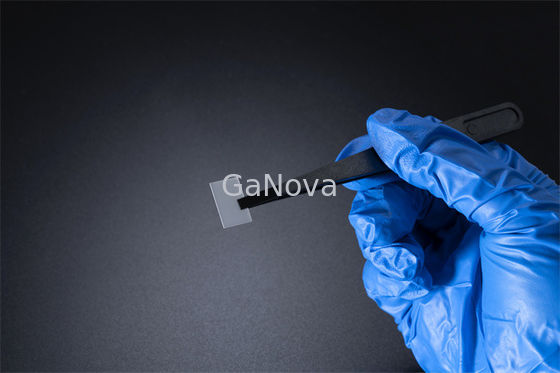

JDCD04-001-005 10x15mm2(-201)UID-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

10x15mm2(-201)UID-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM<350arcsec,Ra≤0.5nm Resistance 4.13E+17Ω/cm-3 Optoelectronic devices, insulating layers of semiconductor materials, and UV filters



With increased energy efficiency, smaller required working parts, and a higher switching frequency, power density is increased which, when all of these factors are considered, leads to much faster device speeds. The processing power is greatly increased compared to silicon-based devices. Thus, if you compare a gallium device to a silicon one, the processing speeds on the gallium nitride device will be noticeably higher.



Gallium nitride substrate--Research level
Dimensions 10*10mm 10*15mm
Thickness 0.6~0.8mm
Orientation (010) (201)
Doping UID
Polished surface Single side polished
Resistivity/Nd-Na / 4.13E+17
FWHM <350arcsec
Ra ≤0.5nm
Package Packaged in a class 100 clean room environment, under a nitrogen atmosphere
