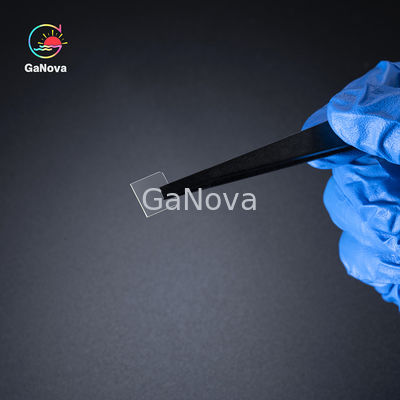

JDCD04-001-003 10x10mm2 100(Off 6°) Fe-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

10x10mm2 100(off 6°) Fe-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM＜350arcsec,Ra≤5nm Optoelectronic devices, insulating layers of semiconductor materials, and UV filters

Power density is greatly improved in gallium nitride devices compared to silicon ones because GaN has the capacity to sustain much higher switching frequencies. It also has an increased ability to sustain elevated temperatures.

gallium nitride is a direct band gap semiconductor (band gap = 3.4 eV) having wurtzite type structure and is the material used for making light-emitting devices that can withstand corrosive environments. Gallium nitride is prepared by the reaction of Ga2O3 with NH3 at elevated temperatures of the order of 1000°C.

About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.

FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
