Ra 0.3nm Ga2O3 Single Crystal Epitaxial Wafer 2 Inch 4 Inch

Ra 0.3nm Ga2O3 Single Crystal Epitaxial Wafer 2 Inch 4 Inch
Ra 0.3nm Ga2O3 Single Crystal Epitaxial Wafer 2 Inch 4 Inch

Large Image :  Ra 0.3nm Ga2O3 Single Crystal Epitaxial Wafer 2 Inch 4 Inch

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD04-001-001&002
Payment & Shipping Terms:

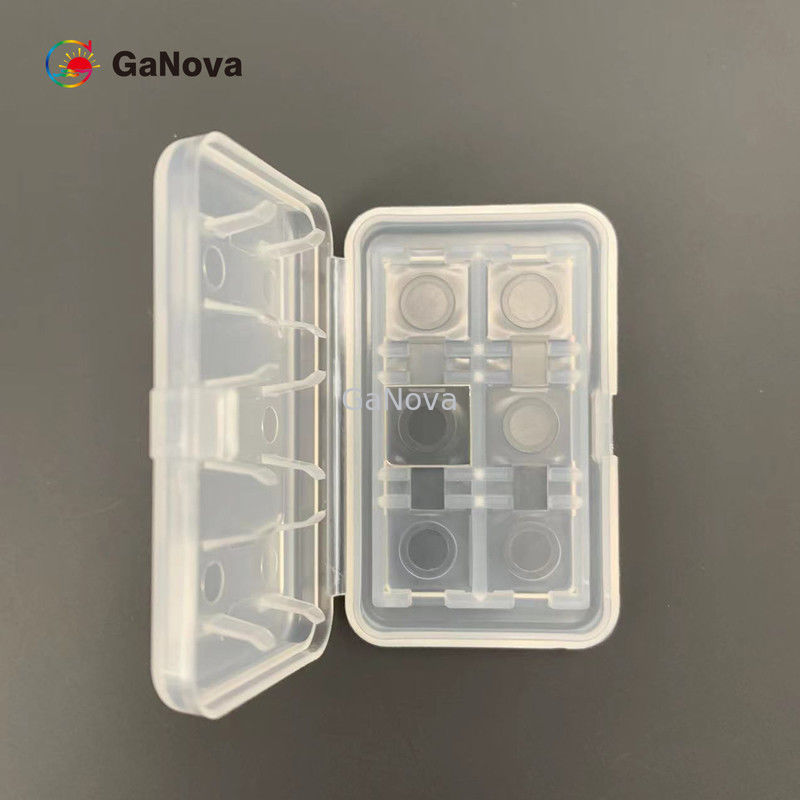

Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days

Ra 0.3nm Ga2O3 Single Crystal Epitaxial Wafer 2 Inch 4 Inch

Description
Product Name: Single Crystal Substrate Thickness: 0.6~0.8mm
Orientation: (201) FWHM: <350arcsec
Polished Surface: Single Side Polished Ra: ≤0.3nm
Highlight:

Ga2O3 epitaxial wafer 2 Inch

,

Single Crystal Substrate 4 Inch

,

single crystal epitaxial wafer

Ra≤0.3nm Single Crystal Substrate Thickness 0.6~0.8mm Orientation (-201)

10x10mm2 (-201) Fe-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM<350arcsec,Ra≤0.3 nm Optoelectronic devices, insulating layers of semiconductor materials, and UV filters



The number of publications on Ga2O3 has accelerated in recent years, as is evident from Figure 1, due to the interest in electronic and photonic devices with capabilities beyond existing technologies. There has been a healthy balance of experimental and theoretical investigations of the properties of the Ga2O3 system





Gallium nitride substrate--Product level
Dimensions 10*15mm 10*10mm
Thickness 0.6~0.8mm
Orientation (201)
Doping Fe Sn
Polished surface Single side polished
Resistivity/Nd-Na / <9E18
FWHM <350arcsec
Ra ≤0.3nm
Package Packaged in a class 100 clean room environment, under a nitrogen atmosphere
