JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing
JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing
JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

Large Image :  JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD04-001-007
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days

JDCD04-001-007 10x10mm2(010)Sn-Doped Free-Standing Ga2O3 Single Crystal Substrate Product Grade Single Polishing

Description

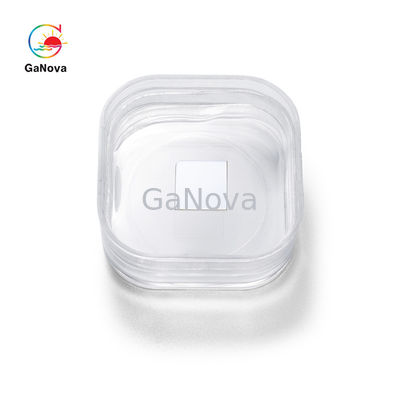

Thickness: 0.6~0.8mm Product Name: Single Crystal Substrate
Orientation: (101) Polished Surface: Single Side Polished
FWHM: <350arcsec Ra: ≤0.5nm

10x10mm2(010)Sn-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM<350arcsec,Ra≤0.5nm Resistance 1.53E+18Ω/cm-3 Optoelectronic devices, insulating layers of semiconductor materials, and UV filters



While silicon-based devices have been able to produce relatively efficient devices, the improved characteristics of gallium nitride give GaN semiconductors the advantage of losing far less energy to heat. The wide bandgap allows GaN devices to sustain much higher temperatures than silicon, allowing a higher level of energy efficiency to your favorite devices overall.



Gallium nitride substrate--Research level
Dimension 10*15mm 10*10mm
Thickness 0.6~0.8mm
Orientation (010)
Doping Sn
Polished surface Single side polished
Resistivity/Nd-Na 2.00E+17 1.53E+18
FWHM <350arcsec
Ra ≤0.5nm
Package Packaged in a class 100 clean room environment, under a nitrogen atmosphere
