JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing
JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

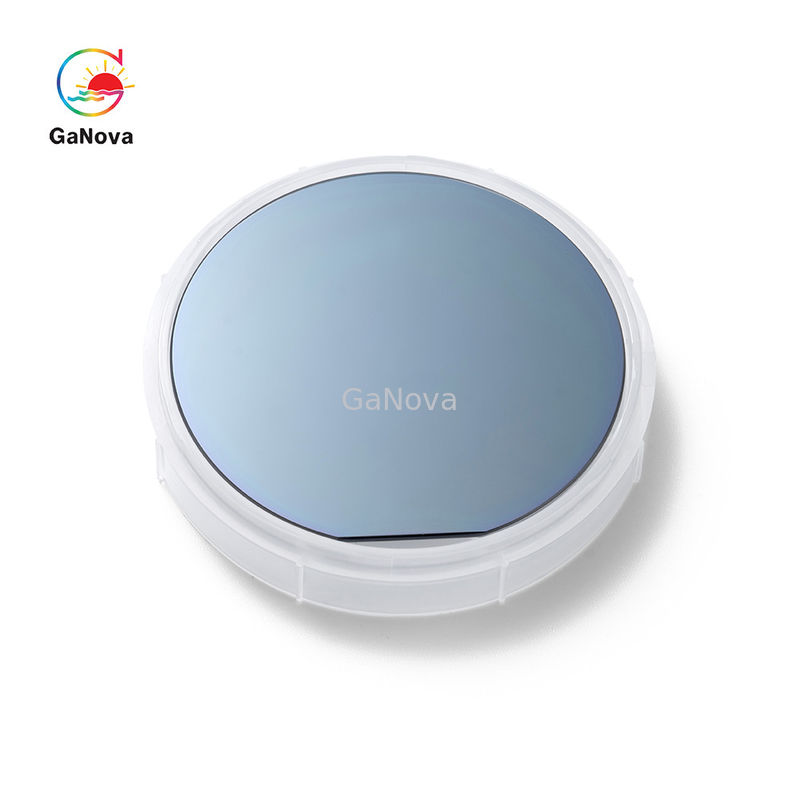

JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

Large Image :  JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD07-001-001
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

JDCD07-001-001 4-Inch SOI Epitaxial Wafer For MEMS Processing

Description
Diameter: 4" Orientation: <100>,<111>
Type/Dopant: P Type/Boron , N Type/Phos, N Type/As, N Type/Sb Thickness(μm): 300-725
Resistivity: 0.001-20000 Ohm-cm Surface Finished: P/P, P/E
Particle: <10@.0.3um

4-Inch SOI Epitaxial Wafer For MEMS Processing




Overview

Although silicon crystals may look metallic, they are not entirely metals. Due to the "free electrons" that move easily between atoms, metals are good conductors of electricity, and electricity is the movement of electrons. A pure silicon crystal, on the other hand, is nearly an insulator; allowing very little electricity to pass through it. However, this can be changed through a process called doping.





Specification



SOI
Diameter 4’’ 5’’ 6’’ 7’’





Device Layer

Dopant Boron,Phos,Arsenic,Antimony,Undoped
Orientation <100>,<111>
Type SIMOX, BESOI, Simbond, Smart-cut
Resistivity 0.001-20000 Ohm-cm
Thickness(um) 0.2-150
The Uniformity <5%
BOX Layer Thickness(um) 0.4-3
Uniformity <2.5%





Substrate

Orientation <100>, <111>
Type/Dopant P Type/Boron , N Type/Phos, N Type/As, N Type/Sb
Thickness(um) 300-725
Resistivity 0.001-20000 Ohm-cm
Surface Finished P/P, P/E
Particle <10@.0.3um
