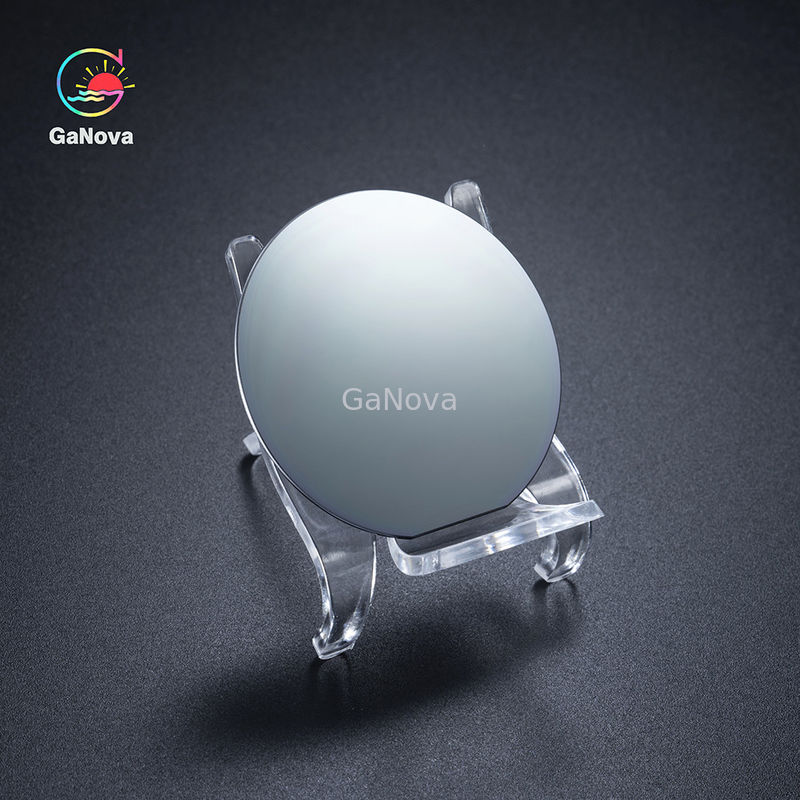

JDCD07-001-003 6-Inch SOI Epitaxial Wafer For MEMS Processing

JDCD07-001-003  6-Inch SOI Epitaxial Wafer For MEMS Processing
JDCD07-001-003  6-Inch SOI Epitaxial Wafer For MEMS Processing

Large Image :  JDCD07-001-003 6-Inch SOI Epitaxial Wafer For MEMS Processing

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD07-001-003
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

JDCD07-001-003 6-Inch SOI Epitaxial Wafer For MEMS Processing

Description
Orientation: <100>,<111> Type/Dopant: P Type/Boron , N Type/Phos, N Type/As, N Type/Sb
Thickness(μm): 300-725 Resistivity: 0.001-20000 Ohm-cm
Surface Finished: P/P, P/E Particle: <10@.0.3um
Highlight:

MEMS Processing SOI Epitaxial Wafer

6-inch SOI epitaxial wafer for MEMS processing




Overview

In electronics, Silicon wafers (also known as substrates) are thin slices of highly pure crystalline Silicon (c-Si), used in the production of integrated circuits-a composite of several electronic components. Silicon wafers play an important part in the semiconductor industry as they find their application in electronics and micromechanical devices.







Specification



SOI
Diameter 4’’ 5’’ 6’’ 7’’





Device Layer

Dopant Boron,Phos,Arsenic,Antimony,Undoped
Orientation <100>,<111>
Type SIMOX, BESOI, Simbond, Smart-cut
Resistivity 0.001-20000 Ohm-cm
Thickness(um) 0.2-150
The Uniformity <5%
BOX Layer Thickness(um) 0.4-3
Uniformity <2.5%





Substrate

Orientation <100>, <111>
Type/Dopant P Type/Boron , N Type/Phos, N Type/As, N Type/Sb
Thickness(um) 300-725
Resistivity 0.001-20000 Ohm-cm
Surface Finished P/P, P/E
Particle <10@.0.3um



About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
