VGF GaAs Undoped Substrates 2inch GaAs Si Dopant

VGF GaAs Undoped Substrates 2inch GaAs Si Dopant
VGF GaAs Undoped Substrates 2inch GaAs Si Dopant

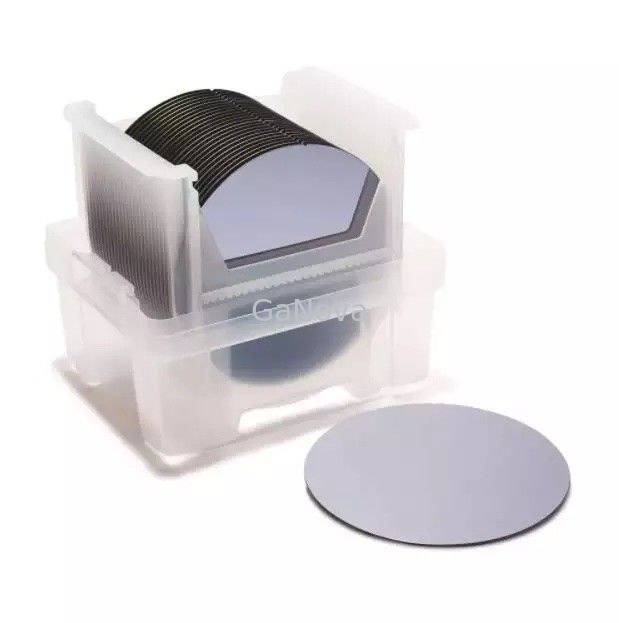

Large Image :  VGF GaAs Undoped Substrates 2inch GaAs Si Dopant

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD10-001-002
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 10000pcs/month

VGF GaAs Undoped Substrates 2inch GaAs Si Dopant

Description
Product Name: GaAs (100) Undoped Substrates Growth Method: VGF
Conduct Type: S-C-N Dopant: GaAs-Si
OF Orientation: EJ[0-1-1]±0.5° IF Orientation: EJ[0-11]±0.5°
Highlight:

VGF Undoped Substrates

,

GaAs substrates S-C-N

,

GaAs Undoped Substrates

2inch GaAs (100) Undoped Substrates (100)15°±0.5° Off Toward<111>A

2inch GaAs (100) Undoped Substrates



Overview

GaAs is a semi-conductor material with excellent performance characteristics including direct band gap, high electron mobility, high-frequency low noise, and high conversion efficiency.



GaAs-Si Wafer

Growth Method

VGF
Conduct Type S-C-N
Dopant GaAs-Si
Orientation (100)15°±0.5° Off Toward<111>A
Orientation Angle
OF Orientation EJ[0-1-1]±0.5°
OF Length (mm) 17±1
IF Orientation EJ[0-11]±0.5°
IF Length(mm) 7±1
Diameter(mm) 50.8±0.2
CC(/c.c.) 0.4E18~1E18
Resistivity(ohm.cm) N/A
Mobility(cm2/v.s) ≥1000
EPD(/cm2) ≤5000
Thickness(um) 350±20
TTV(um) <10
TTR(um) <10
Bow(um) <15
Warp(um) <15
Surface Side1:Polished Side2:Etched
Packaging Cassette or single





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.



FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
