Optical Communications Gallium Arsenide Substrate LEDs

Optical Communications Gallium Arsenide Substrate LEDs
Optical Communications Gallium Arsenide Substrate LEDs

Large Image :  Optical Communications Gallium Arsenide Substrate LEDs

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD10-001-002
Payment & Shipping Terms:

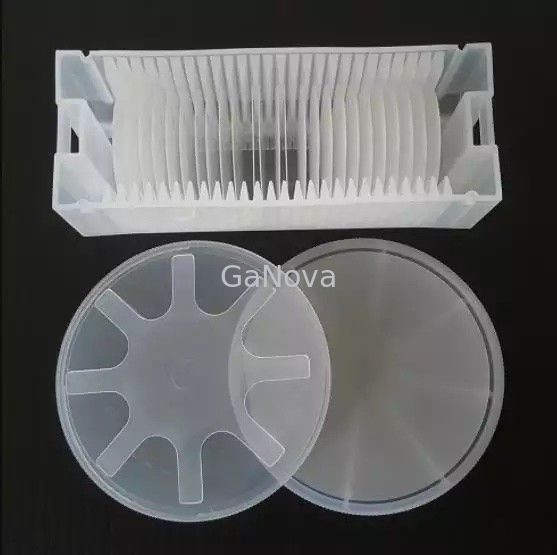

Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 10000pcs/month

Optical Communications Gallium Arsenide Substrate LEDs

Description
Product Name: GaAs (100) Undoped Substrates Growth Method: VGF
Conduct Type: S-C-N Dopant: GaAs-Si
Orientation Angle: OF Orientation: EJ[0-1-1]±0.5°
Highlight:

Optical gallium arsenide substrate

,

Optical Communications Epi Wafer

,

LEDs gallium arsenide substrate

2inch GaAs (100) Undoped Substrates



Overview

Gallium arsenide is used in the manufacture of light-emitting diode s (LEDs), which are found in optical communications and control systems. Gallium arsenide can replace silicon in the manufacture of linear ICs and digital ICs. Linear (also called analog ) devices include oscillator s and amplifier s. Digital devices are used for electronic switching, and also in computer systems.





GaAs-Si Wafer

Growth Method

VGF
Conduct Type S-C-N
Dopant GaAs-Si
Orientation (100)15°±0.5° Off Toward<111>A
Orientation Angle
OF Orientation EJ[0-1-1]±0.5°
OF Length (mm) 17±1
IF Orientation EJ[0-11]±0.5°
IF Length(mm) 7±1
Diameter(mm) 50.8±0.2
CC(/c.c.) 0.4E18~1E18
Resistivity(ohm.cm) N/A
Mobility(cm2/v.s) ≥1000
EPD(/cm2) ≤5000
Thickness(um) 350±20
TTV(um) <10
TTR(um) <10
Bow(um) <15
Warp(um) <15
Surface Side1:Polished Side2:Etched
Packaging Cassette or single





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.



FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
