18mm GaAs Si Wafer 2inch GaAs Undoped Substrates VGF S-C-N

18mm GaAs Si Wafer 2inch GaAs Undoped Substrates VGF S-C-N
18mm GaAs Si Wafer 2inch GaAs Undoped Substrates VGF S-C-N

Large Image :  18mm GaAs Si Wafer 2inch GaAs Undoped Substrates VGF S-C-N

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD10-001-002
Payment & Shipping Terms:

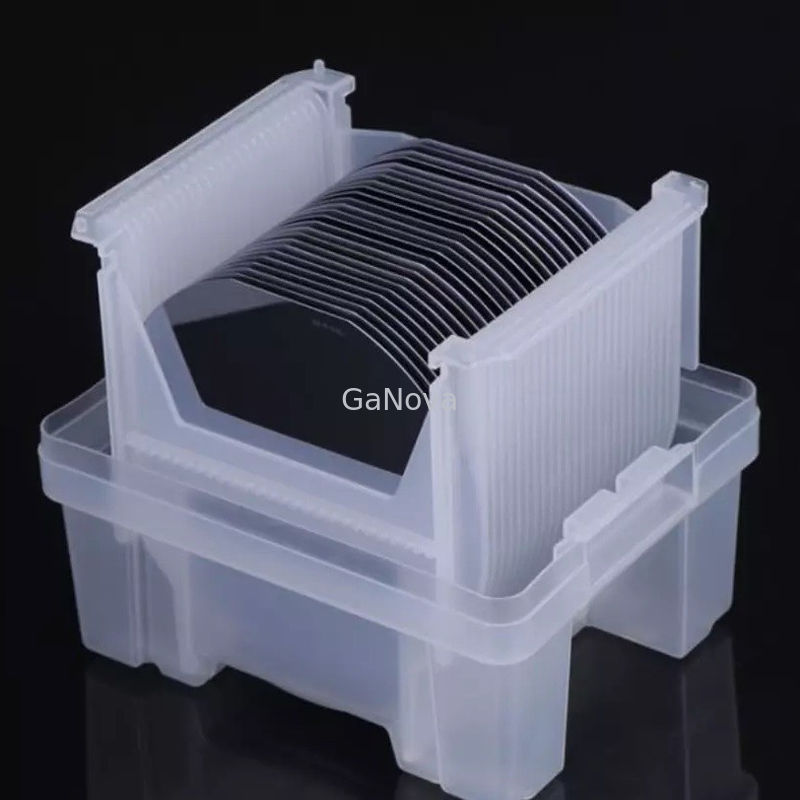

Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 10000pcs/month

18mm GaAs Si Wafer 2inch GaAs Undoped Substrates VGF S-C-N

Description
Product Name: GaAs-Si Wafer Growth Method: VGF
Conduct Type: S-C-N OF Orientation: EJ[0-1-1]±0.5°
OF Length (mm): 17±1 IF Orientation: EJ[0-11]±0.5°
Highlight:

18mm GaAs Si Wafer

,

GaAs Undoped Substrates VGF

,

GaAs Si Wafer 2inch

2inch GaAs (100) Undoped Substrates



Overview

GaAs is often used as a substrate material for the epitaxial growth of other III-V semiconductors, including indium gallium arsenide, aluminum gallium arsenide and others.
Gallium arsenide (chemical formula GaAs) is a semiconductor compound used in some diode s, field-effect transistor s (FETs), and integrated circuit s (ICs). The charge carriers, which are mostly electron s,move at high speed among the atom s.




GaAs-Si Wafer

Growth Method

VGF
Conduct Type S-C-N
Dopant GaAs-Si
Orientation (100)15°±0.5° Off Toward<111>A
Orientation Angle
OF Orientation EJ[0-1-1]±0.5°
OF Length (mm) 17±1
IF Orientation EJ[0-11]±0.5°
IF Length(mm) 7±1
Diameter(mm) 50.8±0.2
CC(/c.c.) 0.4E18~1E18
Resistivity(ohm.cm) N/A
Mobility(cm2/v.s) ≥1000
EPD(/cm2) ≤5000
Thickness(um) 350±20
TTV(um) <10
TTR(um) <10
Bow(um) <15
Warp(um) <15
Surface Side1:Polished Side2:Etched
Packaging Cassette or single





About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.



FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
