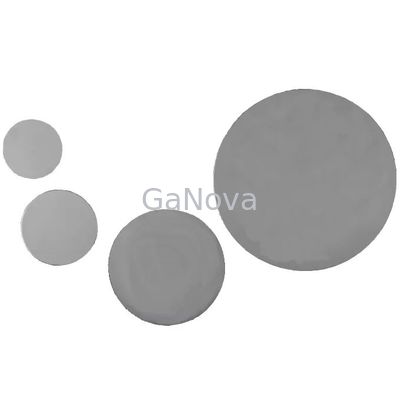

12 Inch Silicon Wafer P Type Boron N Type Phos

12 Inch Silicon Wafer P Type Boron N Type Phos
12 Inch Silicon Wafer P Type Boron N Type Phos

Large Image :  12 Inch Silicon Wafer P Type Boron N Type Phos

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD06-001-007
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

12 Inch Silicon Wafer P Type Boron N Type Phos

Description
Diameter: 12" Grade: Prime
Growth Method: CZ Orientation: <1-0-0>,<1-1-1>,<1-1-0>
Thickness(μm): 775 Resistivity: 0.001-100 Ohm-cm
Surface Finished: P/E,P/P,E/E,G/G Particle: <10@0.5μm; <10@0.3μm; <10@0.2μm;
Highlight:

12 Inch Silicon Wafer

,

Boron semiconductor si wafer

,

P Type Silicon Wafer

Silicon Wafer Type/Dopant P Type/Boron,N Type/Phos,N Type/As, N Type/Sb

2-Inch Silicon Wafer MEMS Devices, Integrated Circuits,Dedicated Substrates For Discrete Devices




Overview

All sorts of technological innovation have enabled the evolutionary development of electronic devices, which have added immeasurably to our lives and greatly facilitated cultural progress.
Some products have consequentially become smaller, and others larger; some lighter, some stronger, some faster.





Specification

silicon wafer

Diameter



2"/3"/4"/5"/6"/8"/12"

Grade Prime
Growth Method CZ
Orientation <1-0-0>,<1-1-1>,<1-1-0>
Type/Dopant P Type/Boron,N Type/Phos,N Type/As, N Type/Sb
Thickness(μm)

279/380/525/625/675/725/775

Thickness Tolerance Standard ± 25μm,Maximum Capabilit/ies ± 5μm
Resistivity 0.001-100 ohm-cm
Surface Finished P/E,P/P,E/E,G/G
TTV(μm) Standard <10 μm,Maximum Capabilities<5μm
Bow/Warp Standard <40 μm,Maximum Capabilities<20 μm
Particle <10@0.5μm; <10@0.3μm; <10@0.2μm;
