Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

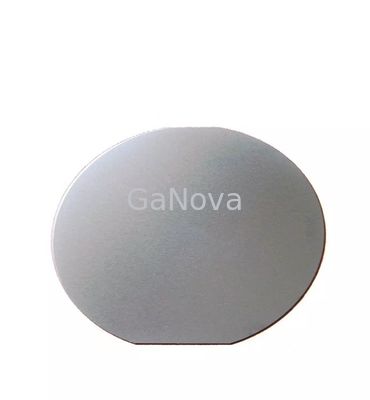

Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G

Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G
Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G

Large Image :  Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD06-001-002
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 25pcs or single wafer containers.
Delivery Time: 3-4 week days
Payment Terms: T/T
Supply Ability: 50000pcs/month

Silicon 8 Inch Wafer Surface Finished P/E P/P E/E G/G

Description
Diameter: 8" Grade: Prime
Growth Method: CZ Thickness(μm): 725
Resistivity: 0.001-100 Ohm-cm Surface Finished: P/E,P/P,E/E,G/G
Bow/Warp: Standard <40μm,Maximum Capabilities<20μm Particle: <10@0.5μm; <10@0.3μm; <10@0.2μm;
Highlight:

Silicon 8 Inch Wafer

,

silicon substrate P/P

,

8 Inch Wafer P/E

2-Inch Silicon Wafer MEMS Devices, Integrated Circuits,Dedicated Substrates For Discrete Devices




Overview

In daily life we hardly ever see a silicon wafer, but they are used in every sort of electronic device and are indispensable in our lives.
All sorts of technological innovation have enabled the evolutionary development of electronic devices, which have added immeasurably to our lives and greatly facilitated cultural progress.





Specification



silicon wafer

Diameter



2"/3"/4"/5"/6"/8"/12"
Grade Prime
Growth Method CZ
Orientation <1-0-0>,<1-1-1>,<1-1-0>
Type/Dopant P Type/Boron,N Type/Phos,N Type/As, N Type/Sb
Thickness(μm) 279/380/525/625/675/725/775
Thickness Tolerance Standard ± 25μm,Maximum Capabilit/ies ± 5μm
Resistivity 0.001-100 ohm-cm
Surface Finished P/E,P/P,E/E,G/G
TTV(μm) Standard <10 um,Maximum Capabilities<5 um
Bow/Warp Standard <40 um,Maximum Capabilities<20 um
Particle <10@0.5um; <10@0.3um; <10@0.2um;







About Us

We specialize in processing a variety of materials into wafers, substrates and customized optical glass parts.components widely used in electronics, optics, opto electronics and many other fields. We also have been working closely with many domestic and oversea universities, research institutions and companies, provide customized products and services for their R&D projects. It's our vision to maintaining a good relationship of cooperation with our all customers by our good reputations.





FAQ

Q: Are you trading company or manufacturer ?
We are factory.
Q: How long is your delivery time?
Generally it is 3-5 days if the goods are in stock.
or it is 7-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
Payment <=5000USD, 100% in advance.
Paymen >=5000USD, 80% T/T in advance , balance before shippment.
