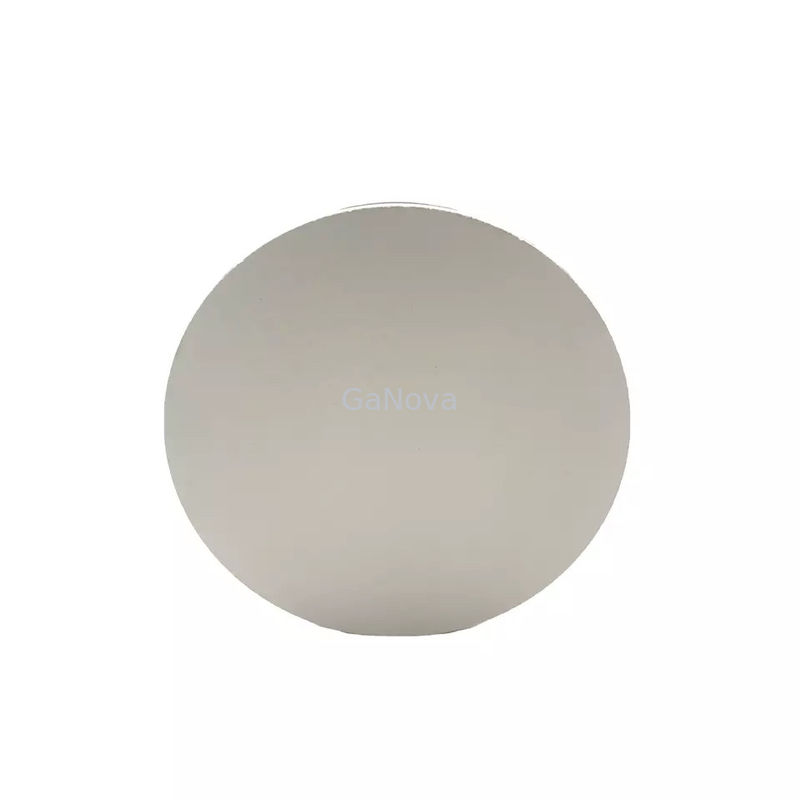

Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing

Certification
China Shanghai GaNova Electronic Information Co., Ltd. certification
I'm Online Chat Now

Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing

Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing
Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing

Large Image :  Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing

Product Details:
Place of Origin: Suzhou China
Brand Name: GaNova
Certification: UKAS/ISO9001:2015
Model Number: JDCD04-001-001
Payment & Shipping Terms:
Packaging Details: Vacuum packing in a class 10000 clean room environment,in cassettes of 6pcs or single wafer containers.
Delivery Time: 3-4 week days

Ga2O3 Fe Doped Wafer Single Crystal Substrate 10x10mm2 Free Standing

Description
FWHM: <350arcsec Polished Surface: Single Side Polished
Thickness: 0.6~0.8mm Product Name: Single Crystal Substrate
Ra: ≤0.3nm Package: Packaged In A Class 100 Clean Room Environment, Under A Nitrogen Atmosphere
Highlight:

Ga2O3 Fe Doped Wafer

,

Single crystal Ga2O3 substrate

,

Fe Doped Wafer 10x10mm2

10x10mm2 (-201) Fe-doped free-standing Ga2O3 single crystal substrate Product grade single polishing Thickness 0.6~0.8mm FWHM<350arcsec,Ra≤0.3 nm Optoelectronic devices, insulating layers of semiconductor materials, and UV filters





Ga2O3 has a long history and the phase equilibria of the Al2O3-Ga2O3-H2O system was first reported in 1952 1 , in which the polymorphs (ie, different forms or crystal structures) of Ga2O3 and their regions of stability were also identified.

There are five commonly identified polymorphs of Ga2O3, labeled as α, β, γ, δ and ε 2-10. These are known, respectively as corundum (α), monoclinic (β), defective spinel (γ), orthorhombic (ε), with the δ phase commonly accepted as being a form of the orthorhombic phase.





Gallium nitride substrate--Product level
Dimensions 10*15mm 10*10mm
Thickness 0.6~0.8mm
Orientation (201)
Doping Fe Sn
Polished surface Single side polished
Resistivity/Nd-Na / <9E18
FWHM <350arcsec
Ra ≤0.3nm
Package Packaged in a class 100 clean room environment, under a nitrogen atmosphere
